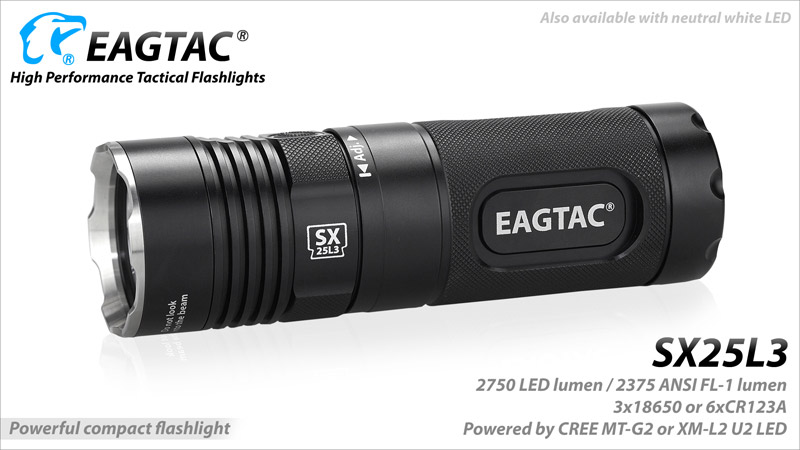

EagleTac SX25L3

Dimensions

Battery Type

• 3x18650 or 6xCR123A2
• Compatible battery (diameter/length)
• 123A: (16-16.8mm/34-34.5mm)
• 18650: (18-18.8mm/67-68.5mm)

Read precaution with li-ion batteries.See other battery type runtimeOperating voltage

• 5.4V - 19V

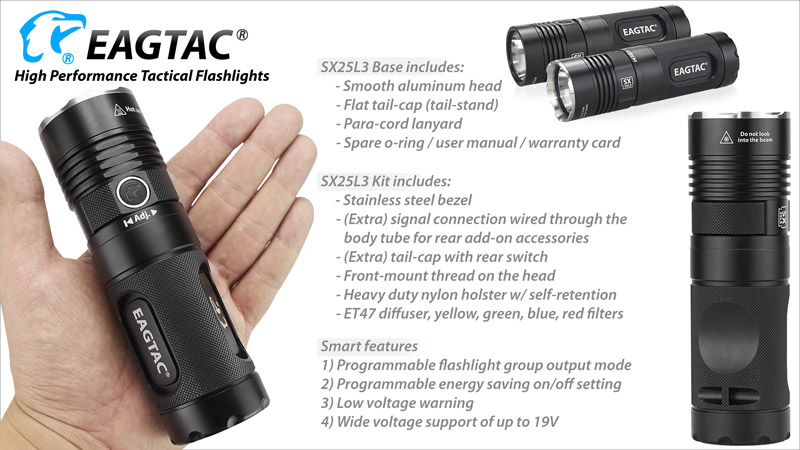

What's included

• SX25L3 flashlight
• Spare o-rings
• User Manual
• Mil-Spec Para-cord Lanyard w/ quick attachment clip
• Flat tail-cap (tail-stand)
• 2xCR123A Battery Magazines

All models

• Base model
• Includes everything listed in "what's included" section above.
• Comes with smooth aluminum bezel.

YRGB Kit

• Includes everything in base mode, plus:
• (Extra) signal connection through the body tube for rear accessories add-on
• (Extra) tailcap w/ switch and tail-standing ability
• Flashlight head come with front-mount thread for bezel and filter attachment
• Stainless steel bezel
• Heavy Duty Nylon Holster w/ self-retention device and open-top design
• ET47 diffuser filter, ET47 yellow filter, ET47 red filter, ET47 green filter, ET47 blue filter.

Replaceable items

• Lens

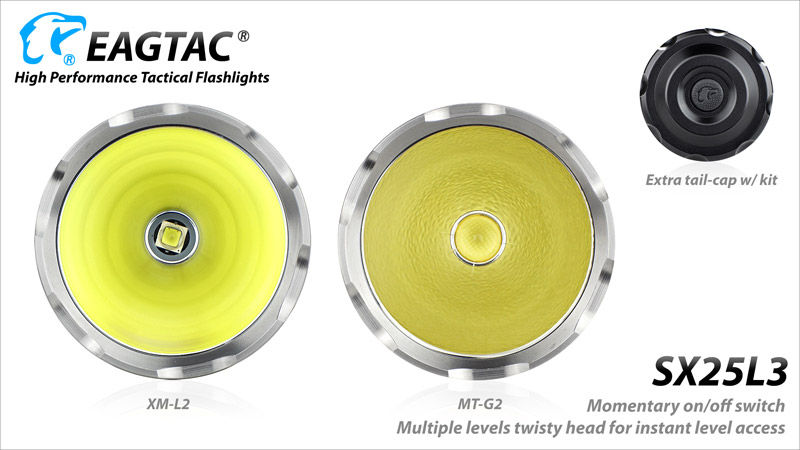

LED

• Cool White
• CREE MT-G2 P0 LED (5000K, 2Step)
• CREE XM-L2 U2 LED (6500K)

Neutral White

• CREE XM-L2 T6 LED (4300K)

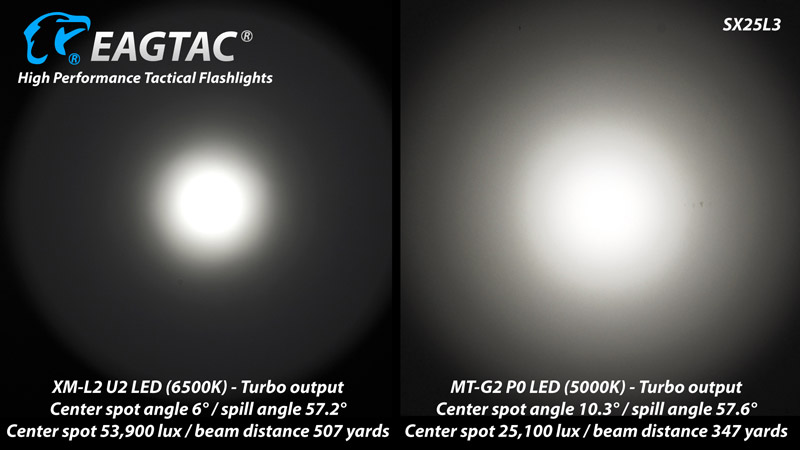

Max output

• MT-G2 P0 LED
• LED lumen: 2750
• ANSI FL-14 lumen: 2375

XM-L2 U2 LED

• LED lumen: 1505
• ANSI FL-14 lumen: 1245

Lens

• Waterwhite glass lens w/ harden treatment
• Anti-reflective (AR) coating on both side (96% transparency)

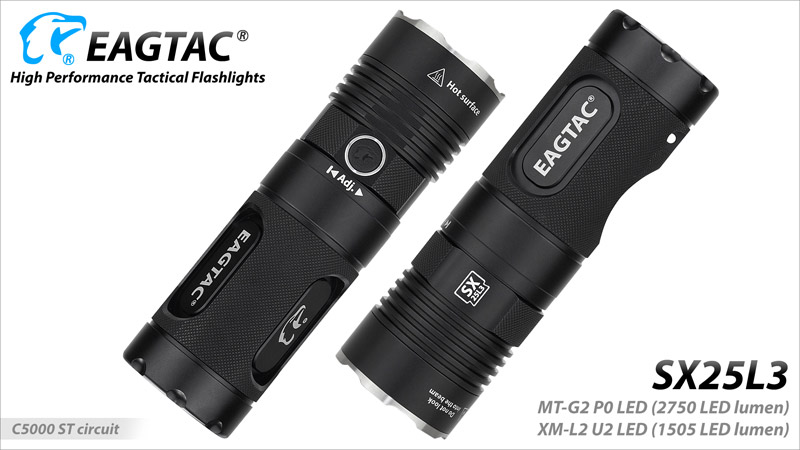

LED circuit

• C5000 ST
• Current regulated buck driver w/ efficiency of up to 93%
• Wide voltage input range
• Non-dimming constant current regulation for all output levels without flicking
• Low battery voltage warning7
• Energy saving feature5
  (user adjustable to prolong runtime)
• Very low standby current (uA)

Reflector

• Smooth aluminum reflector (XM-L2)
• Light textured aluminum reflector (MT-G2)

Material

• HAIII hard anodization aerospace aluminum

Waterproof

• IPX-8 standard

Carrying method

• Para-cord lanyard
• Rigid nylon holster w/ retention device

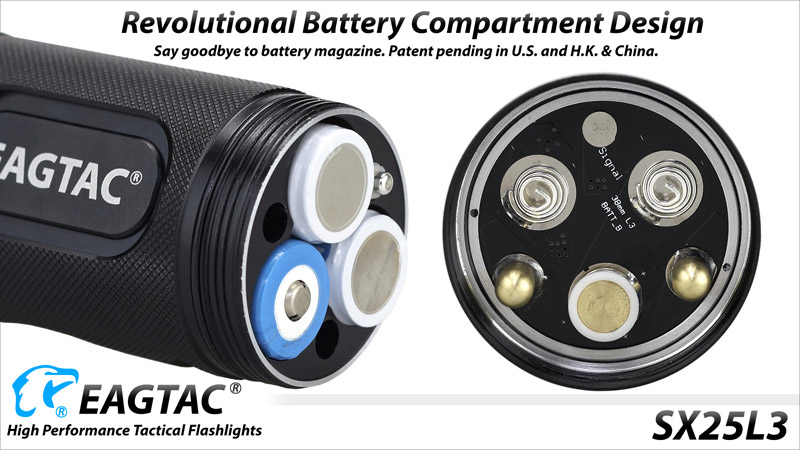

Battery arrangement

• Innovative slot load design
• No battery tray or battery magazine needed
• Battery arragement design patent pending in United Status, Hong Kong, and China

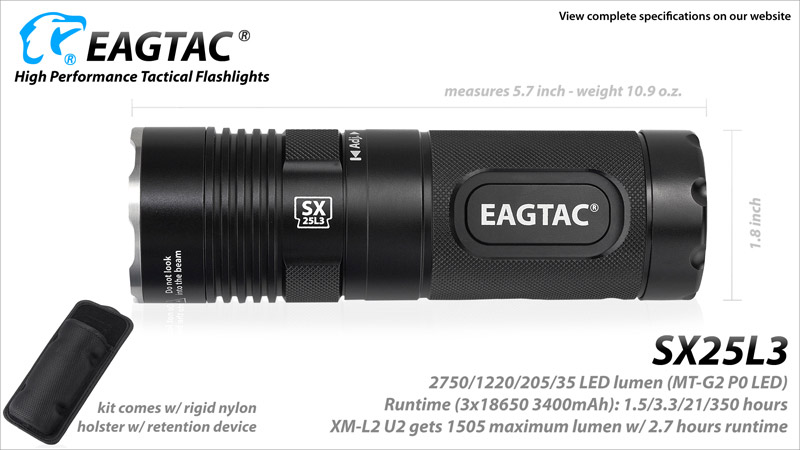

Output and Runtime

• MT-G2 P0 LED
• Four brightness levels (Regular mode)
• Led lumen: 27505-2320/1220/205/35
• ANSI FL-1 lumen: 23755-2006/1057/175/28
• Runtime: 1.5/3.3/21/350 hours6

• Two brightness levels (Tactical mode)
• Led lumen: 27505-2320/281/Strobe I/Strobe II
• ANSI lumen: 23755-2006/243/Strobe I/Strobe II
• Runtime: 1.5/19 hours6

XM-L2 U2 LED

• Four brightness levels (Regular mode)
• Led lumen: 15055-1270/780/121/5
• ANSI FL-1 lumen: 12455-1054/648/99/4
• Runtime: 2.7/5/32/370 hours6

• Two brightness levels (Tactical mode)
• Led lumen: 15055-1270/372/Strobe I/Strobe II
• ANSI lumen: 12455-1054/309/Strobe I/Strobe II
• Runtime: 2.7/13 hours6

XM-L2 T6 neutral white LED has approximately 7% less output lumen compared to the cool white U2 LED.Seven hidden auxiliary outputs7

• Strobe/Strobe(Var)/Flash(Hi)/S.O.S.(Fast)/S.O.S./Becaon/Flash(Lo)

Testing above is performed by 3x18650. See other battery type runtime here.Operations

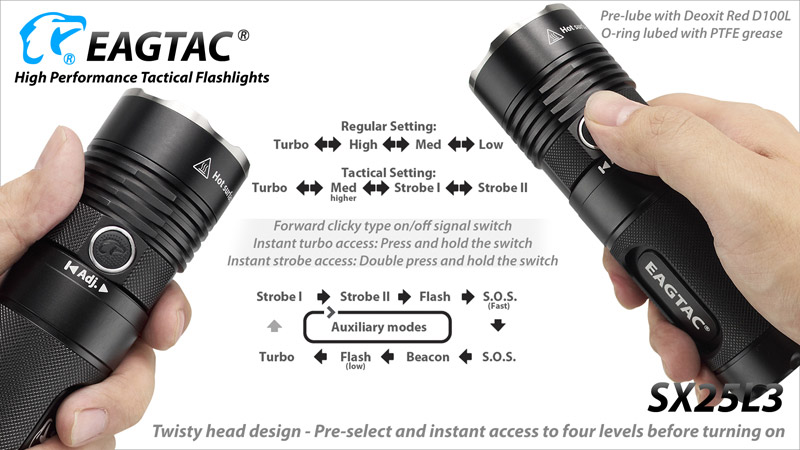

• Basic - Turn on the light by press and release the on/off button switch (<0.4s). To turn off the light, press and release the switch again.
• For momentary on, press and hold the button switch for immediate output.
• Twist the head to select between four output levels. You can pre-select the desired output level before turning on the flashlight.
• Instant Turbo output - at any output level, press and hold the flashlight for 100% output. Release the button to return to previous level.
• Instant Strobe output - at any output level (or off), double press and hold the on/off button switch for strobe output. Release the button to return to previous level (or off).
• To access auxiliary levels, starting at head tight position (1st level), loosen to 3rd or 4th level and then tighten the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loosen the head to quit.
• (Programmable Features) Mode switching: To switch between tactical and regular mode, turn on the flashlight at 1st level, dial to 2nd level and then back to 1st level for ten times within five seconds.
• (Programmable Features) Energy saving feature: Enabled by default, this feature reduces output current by 25% (or 10% when disabled) after 200 seconds at turbo mode. To toggle this feature, turn on the flashlight at 4th level, and dial to 3rd level and then back to 4th level for ten times within five seconds.

ControlsOther features

• LED direct soldering on copper for maximum heatsink ability
• User replaceable glass lens
• Customizable energy saving feature
• Battery reverse polarity protection
• Tail stand
• Extra tail-cap w/ switch for kit version

Warranty

• Ten years performance guaranteed warranty
• Read flashlight regular maintenance
